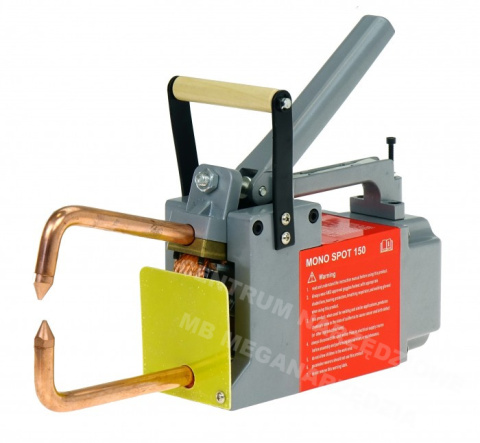

Sheet metal welding machine MONO SPOT 150 1.5+1.5mm MSPOT150
Manual welding machine MONO SPOT 150 for double-sided welding of steel, stainless and galvanized sheets up to 1.5+1.5 mm thick. Power supply 230 V, welding current 3800 A.
Installment 0% from : / mc
| Shipping within | goods available after confirmation - please contact me |
| Shipping price | The Lack Of |
| The Availability Of |
SHIPMENT FROM THE MANUFACTURER
0
arts
|
| The Weight Of The | 11 kg |
| BADEK IDEAL | |
| The bar code | |
| EAN | 5903991109873 |
Order tel: +48 789 134 073
| Leave your phone |
Handheld welding machine MONO SPOT 150 – precise welding of steel and galvanized sheets
The MONO SPOT 150 welding machine is a robust device designed for double-sided welding of low-carbon, stainless and galvanized steel sheets with a maximum thickness of 1.5+1.5 mm. Thanks to the manual control of the welding cycle and the pressure force of the electrodes, the welder is suitable for repair work, small-batch production and body shops. The device is powered by a single-phase (230 V) and has a welding current of 3800 A, which guarantees high welding efficiency.
Technical data
| Welding current | 3800 A |
| Power | 230 V, 50/60 Hz |
| Maximum sheet thickness | 1.5+1.5mm |
| Idle secondary voltage | 1.6 V |
| Maximum electrode pressure | 1780 N |
| Scales | 9.6 kg |
| Overall dimensions | 400 x 100 x 300 mm |
Equipment
- Electrode arms
Warranty conditions
The device is covered by a 12-month warranty for professional use. The warranty service is carried out in the door-to-door system, which means no transport costs on the user's side.
Frequently Asked Questions (FAQs)
What materials is the MONO SPOT 150 welding machine suitable for?
The welding machine is designed for welding low-carbon, stainless and galvanized steel sheets with a maximum thickness of 1.5+1.5 mm.
What is the voltage of the device?
The welding machine is powered from a single-phase mains (230 V, 50/60 Hz), which allows it to be used in standard workshop conditions.
What is the maximum electrode pressure?
The maximum electrode pressure is 1780 N, which ensures high quality and durability of welding.
